Rear Baffle Quick Check

If the tank over fills with abrasive or it has been a long time since the last full tank clean the rear baffle can become clogged with abrasive.  This will mess with the water leveling features of the WAZER and can be baffling to debug. (sorry)

Tools Required:

none

Procedure

1.   Remove rear tank cover.



2.     Start the Used Abrasive Collection mode.  (Setup & Maintenance > Maintenance >Used Abr. Collect)

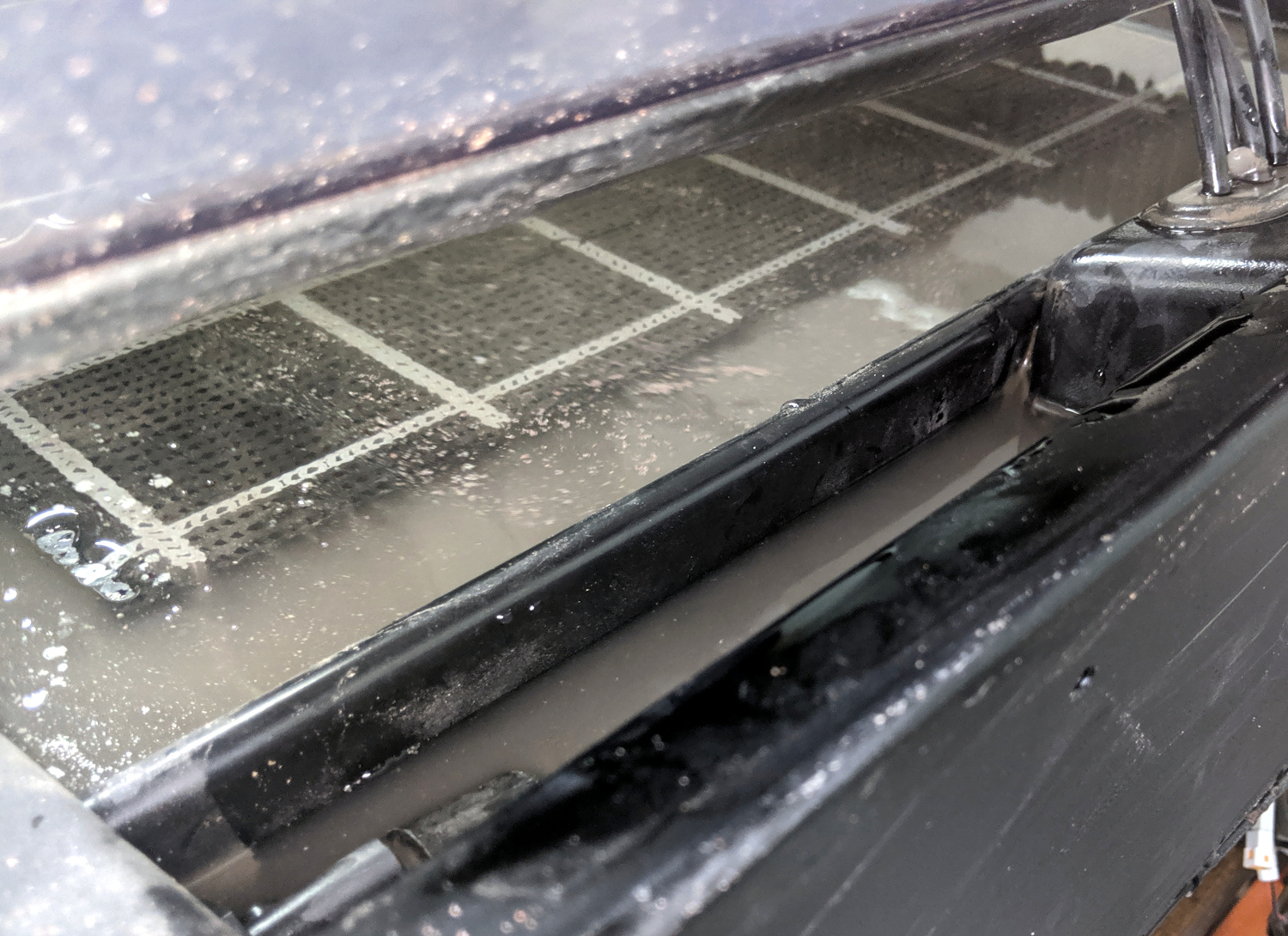

3.   Observe the difference in water level between the rear filter area and the main tank.  Under normal operation there will be a small difference ( 0.25", 6mm)  at most.  If it is greater than this then the rear baffle is clogged and a full tank cleaning is required.
