WAZER Systems Dissection

WAZER can be broken into seven systems based on the primary functions they serve:

  1. [ALERT] High-Pressure – This system pressurizes water for cutting, mixes the water and abrasive, and ejects the mixture toward the material. Stay clear of all high-pressure components during operation. They are clearly identified on the illustrations shown below. All operators are required to be familiar with these components and their location.

  2. Abrasive System – This system stores the abrasive and controls its flow to the high velocity jet.

  3. Enclosure – This contains the water, used abrasive, and material you are cutting within WAZER.

  4. Filtration – This system separates tank water and used abrasive, collects the used abrasive from the tank and drains water out of WAZER.

  5. Gantry – This system controls the motion of the Nozzle.

  6. Control Box – This includes the electrical components that control and distribute signals throughout WAZER.

  7. Cut Bed – This is where you fasten your material.

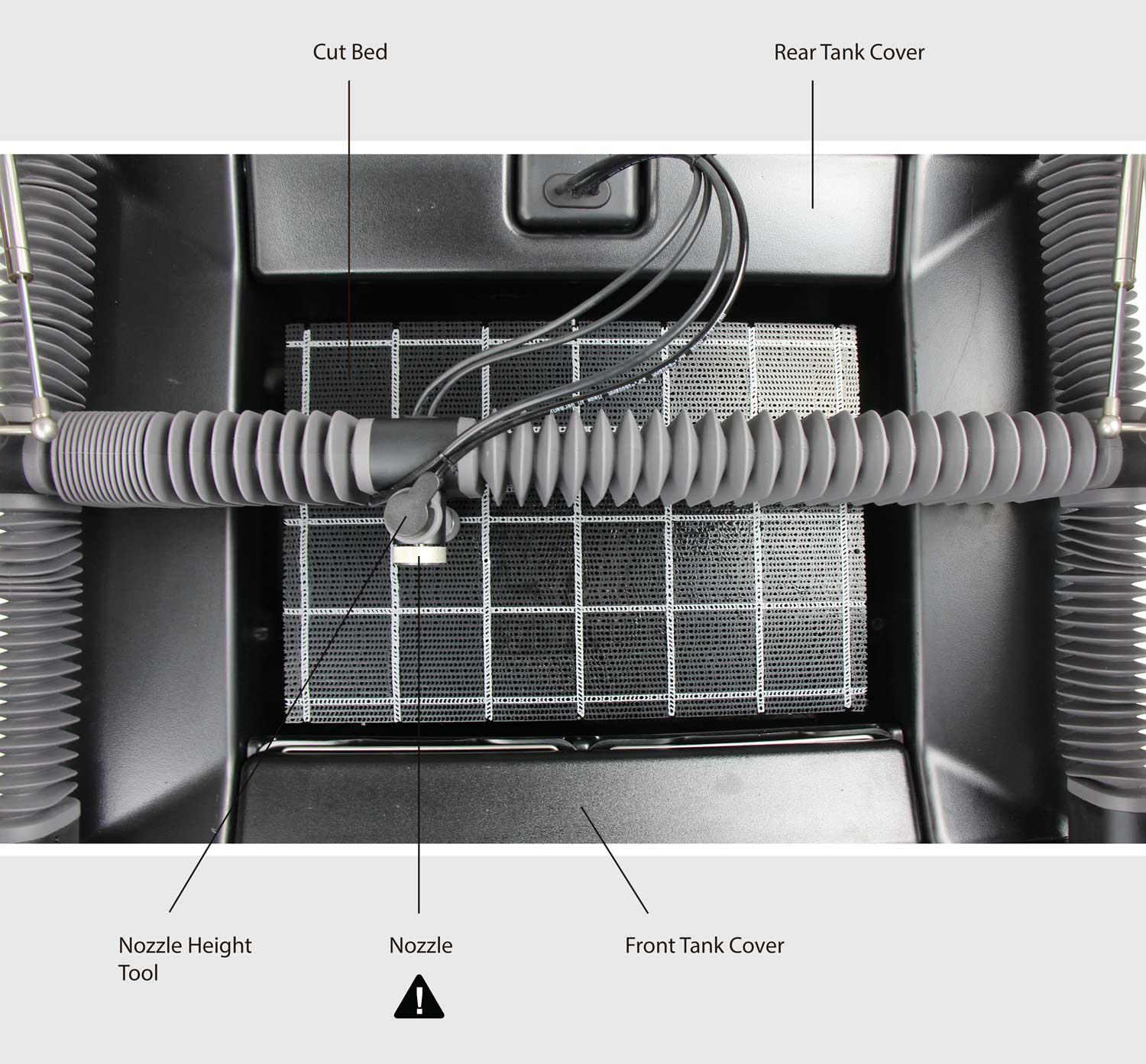

WAZER MAIN UNIT FRONT

WAZER MAIN UNIT RIGHT SIDE PANEL

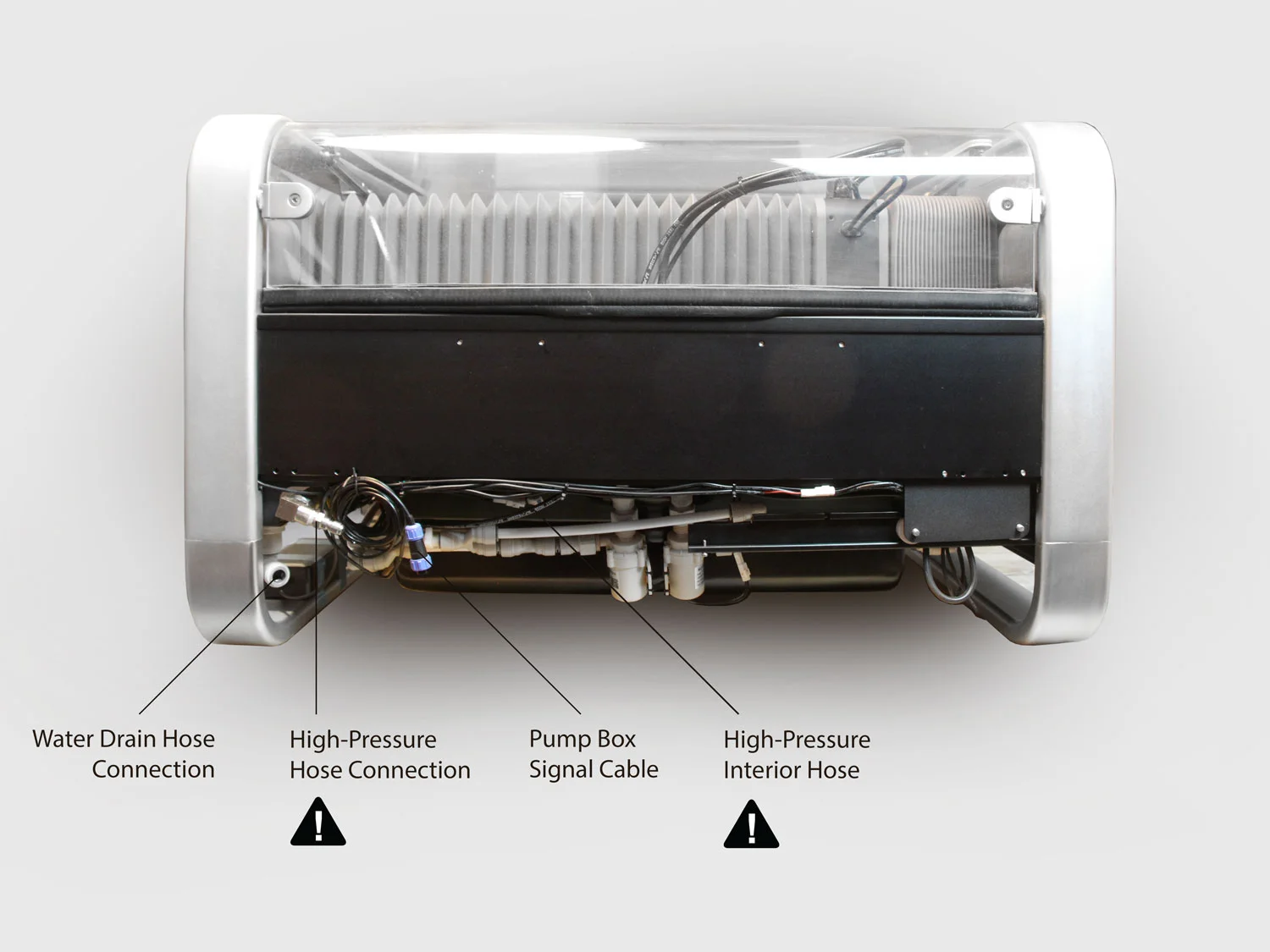

WAZER MAIN UNIT BACK

WAZER MAIN UNIT INSIDE

WAZER MAIN UNIT INSIDE

WAZER PUMP BOX BACK

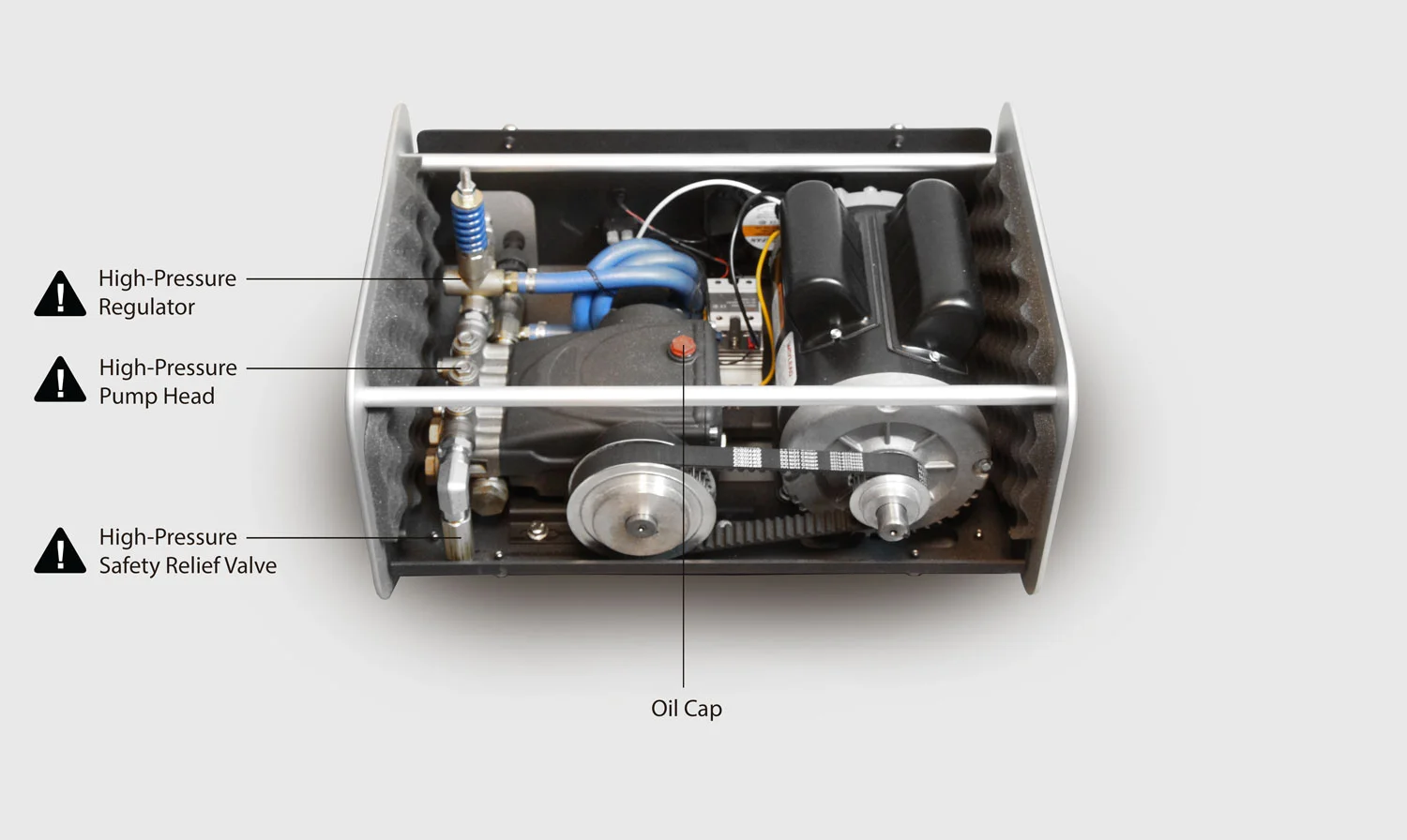

WAZER PUMP BOX INSIDE
